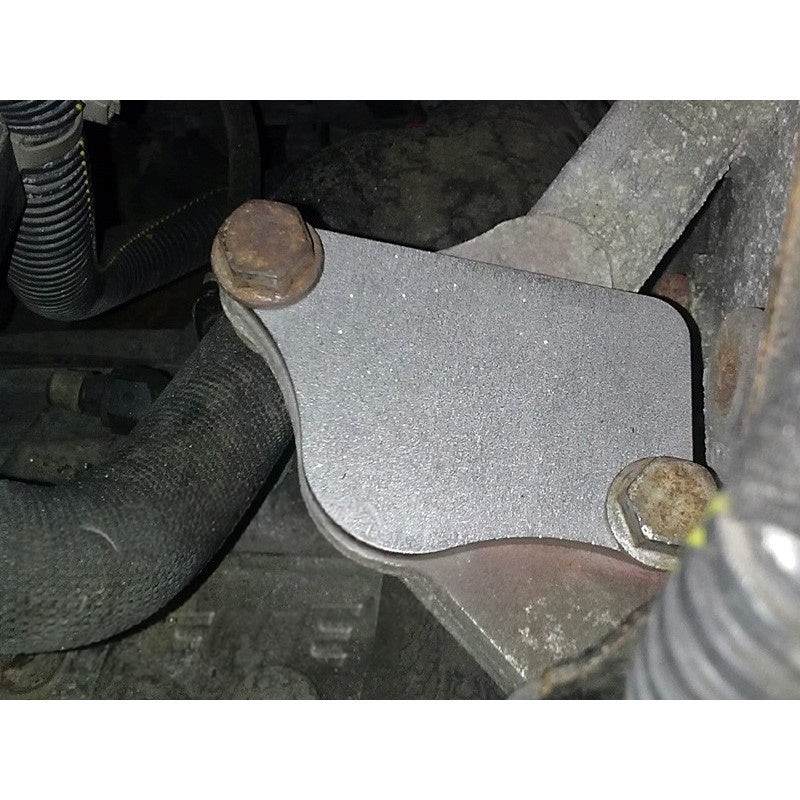

EGR valve cancellation Opel 2.2 16v gasoline z22se ref.:EMU_08
TO VIEW EGR VALVE DELETE KIT OPEL 2.2 16V PETROL Z22SE CLICK HERE
All connection activities must be performed with the ignition off!
1. The EGR simulator includes 4 wires marked as follows:
A (blue);
B (yellow-green);
D (red);
E (white),
which must be connected to the EGR connector
2. The simulator wires must be connected to the EGR connector wires according to the following table.
| Vehicle wiring color | EGR Connector | EGR Emulator |
| brown | Pin A | blue (A) |
| brown/blue | Pin B | yellow/green (B) |
| brown or brown/white | Pin C | unused |
| black/white or black/blue | Pin D | red (D) |
| black/brown or black/red | Pin E | white (E) |

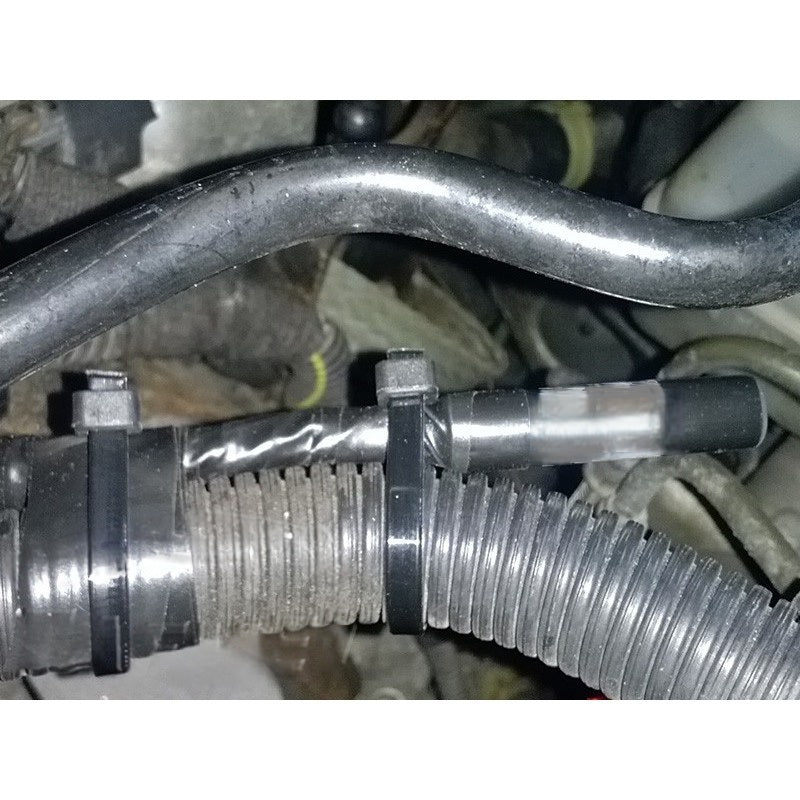

3. Next, the EGR simulator must be attached to the wiring.
