EGR valve delete OPEL 1.4 1.6 gasoline x14xe x16xel x16szr x16xe x16szr z14xe z16xe ref.:EMU_07
TO VIEW THE EGR BLANKING KIT OPEL x14xe x16xel x16szr x16xe x16szr z16xe CLICK HERE

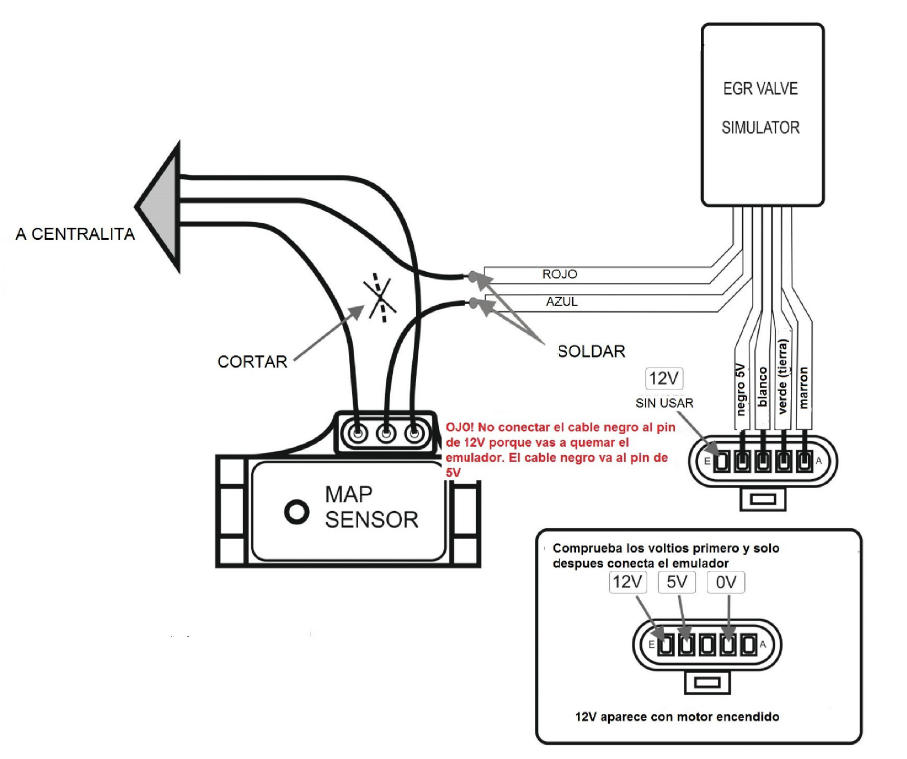

X14XE,X14XEL,X16XE,X16XEL,Z14XE,Z16XE,Z16SE
Before starting, it is necessary to check the voltages of the EGR plug.
The voltages must be measured with the key in the ignition position (relative to ground).
ATTENTION!!! After measuring the voltages, remove the key; it is advisable to disconnect the battery.
The emulator must be connected in place of the EGR valve. The EGR valve remains in place; it must be in a closed position or plugged with our cap. The emulator wires must be connected to the pins of the plug; they can be soldered directly to the plug wires. Insulate the connections and secure the emulator with cable ties.

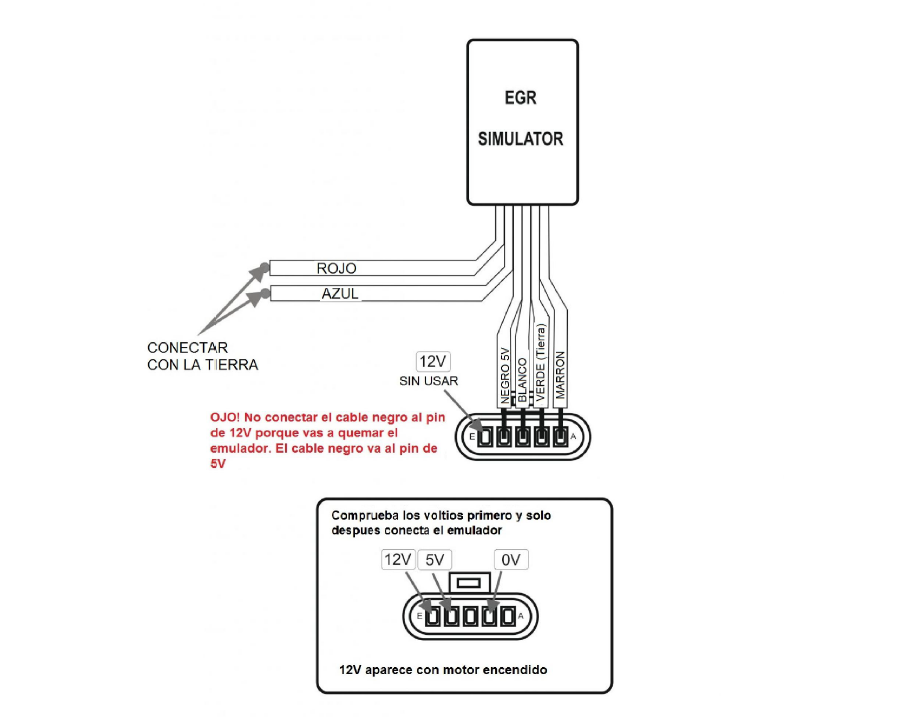

X16SZR
Before starting, it is necessary to check the voltages of the EGR plug.
The voltages must be measured with the key in the ignition position (with respect to ground).
ATTENTION!!! After measuring the voltages, remove the key; it is advisable to disconnect the battery.
The emulator must be connected in place of the EGR valve. The EGR valve remains in place; it must be in the closed position or plugged with our cap. The emulator wires must be connected to the pins of the plug; they can be soldered directly to the plug wires. Insulate the connections and secure the emulator with cable ties.
